41ft long
-
9,670 lbs
-
Sleeps 9
-
3 slides
-
BunkhouseTwo Entry/Exit Doors

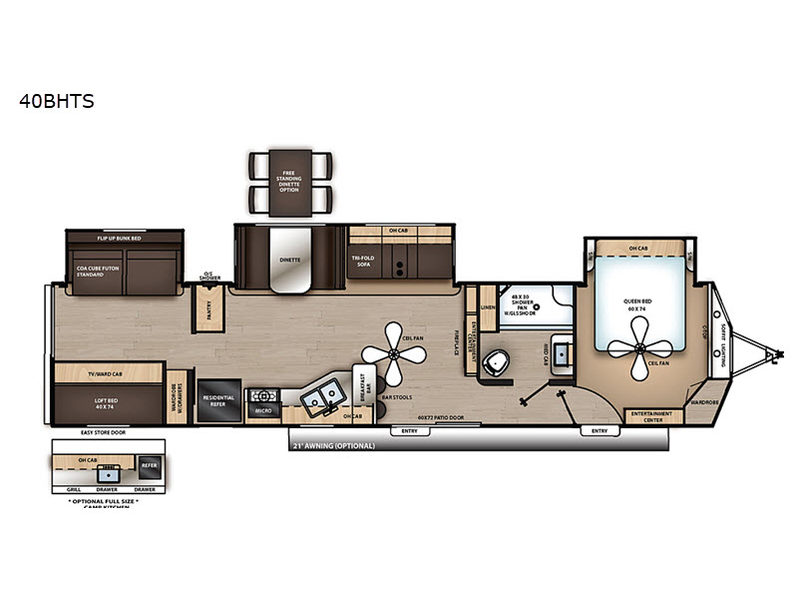

40BHTS Floorplan
Specifications
| Sleeps | 9 | Slides | 3 |
| Length | 40 ft 9 in | Ext Width | 8 ft |
| Ext Height | 11 ft 8 in | Int Height | 7 ft |
| Hitch Weight | 1130 lbs | GVWR | 11000 lbs |
| Dry Weight | 9670 lbs | Cargo Capacity | 1330 lbs |
| Fresh Water Capacity | 44 gals | Grey Water Capacity | 80 gals |
| Black Water Capacity | 40 gals | Furnace BTU | 35000 btu |
| Number Of Bunks | 2 | Available Beds | Queen |
| Refrigerator Type | Residential | Cooktop Burners | 3 |
| Shower Size | 48" x 30" | LP Tank Capacity | 30 |
| Water Heater Type | DSI Gas/Electric | AC BTU | 15000 btu |
| TV Info | 39" Flat Screen TV | Axle Count | 2 |
| Number of LP Tanks | 2 | Shower Type | Shower w/Seat |
| Electrical Service | 50 amp | VIN | 5ZT2CA5B6KX014929 |
Description
Coachmen Catalina Destination Series destination trailer 40BHTS highlights:
- Private Bunkhouse
- Dual Entry
- Private Bedroom
- Three Slides
- Residential Refrigerator
There is no doubt you will have fun camping for a weekend or more in this Catalina Destination Series trailer by Coachmen RV. This model offers triple slide outs and overhead cabinets which give you plenty of room for your family and belongings. Your kids will enjoy having their own space with the rear private bunkhouse. When you want to do a little entertaining, the main living area will be the perfect spot to do so with its breakfast bar and bar stools, booth dinette, and tri-fold sofa. The private front bedroom with its own exterior door featuring a queen-size bed is a nice retreat for mom and dad, and with a separate entry door you can easily slip out for late night star gazing, a quiet evening out under the patio awning, or an early morning walk!
When you are looking for a more permanent camping location, then you will want to check out the Coachmen RV Catalina destination trailer. The Catalina Destination is the ideal trailer to leave at your favorite campground for year-round camping. You will consistently feel the benefits of the residential in-floor ducted heating system, and if you need more circulation throughout the interior, you can simply switch on one of the two ceiling fans to help increase the air flow. Because of the 7' ceiling height on the interior, you will be able to move about freely without the worry of hitting your head, and if you prefer to take your parties outdoors, the exterior speakers with LED lighting will provide the music to enhance the atmosphere.
Features
- Cambered Structural Steel I-Beam Frame
- Full-Length Frame Out Riggers
- 5/8" Tongue and Groove Plywood Floor Decking
- 2" x 3" Floor Joists on Approximately 12" Centers
- 84" Ceiling Height
- 3/8" Fully Decked Walk-On Roof
- Seamless Dicor Roof with 12-Year Warranty
- Easy-Trac Rack and Pinion Slide-Out(s)
- R-7 Fiberglass Insulation Throughout
- Gas/Electric DSI Water Heater
- Water Heater By-Pass Winterization Kit
- 15,000 BTU Ducted A/C
- 35,000 BTU Auto-Ignition Furnace with Wall Thermostat
- 12V Demand Water Pump
- Platinum .024" Aluminum Skin with .030 Skirt Metal
- Dexter EZ Lube Axles with Leaf Spring Suspension
- Self-Adjusting Brakes
- Roto-Cast Holding Tanks
- Painted Bumper with Drain Hose Carrier and End Caps
- 50 AMP Electrical Service
- Medicine Cabinet with Mirror
- Solid Master Bedroom Door(s)
- Solid Bunk Room Door
- Night Stands Built into Bed Slide-Out Walls
- Master Bedroom Overhead Cabinets
- Quilted Designer Bedspread
- Teddy Bear Bunk Mats
- Furrion Fireplace in the Living Room
- Bar Stools
- Serta Mattress
- Ceiling Fans in Living Room and Master with Wall Switch
- Prepped for Washer/Dryer (39MKTS, 39RLTS Only)
- Black Tank Flush
- Residential Sliding Glass Door
- Large Front Bay Windows
- XL Swing Arm Grab Handle
- Manual Tongue Jack
- Two 30LB LP Bottles with ABS Cover
- Flush-Mount Baggage Doors with Radius Corners
- Four Stabilizer Jacks
- G20 Tinted Windows
- Two Marine Grade Exterior Speakers with LED Lighting
- Radius Cornered Fiberglass Entry Door
- Entry Door Safety Window
- Aluminum Fender Skirts
- E-Coat Sport Style Wheels
- Exterior 110V G.F.C.I Protected Receptacle
- Exterior RG-6 Coax Cabling and Prepped for Satellite
- Rain Gutters with Drip Spouts
- Radius Entry Steps
- Outside Shower with Handle Hold
- Drop Edge Thermofoil Seamless Counter Tops
- Screwed Cabinet Construction with Pocket Bored Lumber Core Stiles
- Congoleum Woodplank Linoleum Flooring
- Salvaged Light Oak Cabinets
- All-In-One Monitor Panel
- Stereo with DVD Player, CD, MP3, USB, and AM/FM Radio
- 39" Flatscreen TV with Swing Arm TV Bracket
- In-Wall Mounted Interior Speakers
- Deep Undermount Dual Basin 50/50 Sink
- Kitchen Sink Covers
- Residential Pull-Down Sprayer Faucet
- Ball-Bearing Kitchen Drawer Guides
- Microwave
- Home-Style Refrigerator
- 3-Burner Range with Flush-Mount Glass Top
- Oven with Blue LED Accent Lighting
- Range Hood
- Silverware Kitchen Drawer
- Mosaic Tile Backsplash
- Residential In-Floor Ducted Heat
- LED Interior Lighting
- Residential Tri-Fold Sofa
- Sofa Decorative Throw Pillows
- 70" Slide Out Room Height
- Hard Valance Window Treatment in the Living Room
- Pleated Night Window Shades
- Pedestal Thermofoil Dinette Table
- Dinette Storage under Benches
- Easy Access Booth Dinette Storage Doors
- Marine Toilet with Foot Flush
- Skylight above Tub/Shower
- Glass Step-In Shower with Abs Surround
Safety Features
- Smoke Alarm
- LP/CO Gas Detector
- Fire Extinguisher
- Fire Escape Windows
- Dead-Bolt Lock on Entry Door
- Enclosed Underbelly
- Second 13,500 BTU A/C
- Freestanding Table with Four Chairs
- Full-Size Exterior Camp Kitchen (40BHTS Only)
- Power Electric Awning with LED Lights
- Spare Tire with Carrier and Cover
- Non-Self Contained Toilet (Fresh Water Tank and Pump, No Black and Grey Tanks with a Direct Pump)
- Detachable Hitch
- CSA Standards
See us for a complete list of features and available options!
