Floorplan - 2015 Starcraft AR-ONE Widebody 26BH Wide Body
-
29ft long
-
4,280 lbs
-
Sleeps 8
-
BunkhouseFront Bedroom

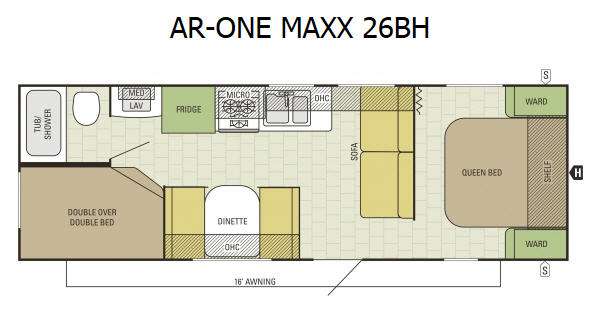

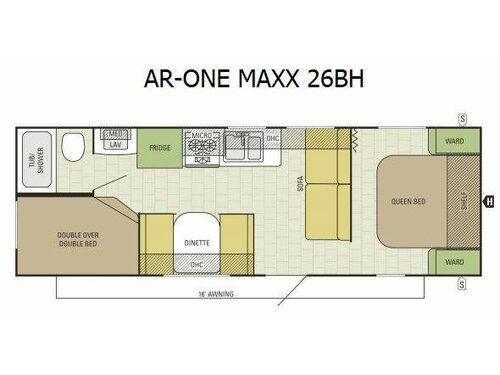

26BH Floorplan
Specifications
| Sleeps | 8 | Length | 29 ft 4 in |
| Ext Width | 8 ft | Ext Height | 10 ft 6 in |
| Int Height | 6 ft 9 in | Hitch Weight | 500 lbs |
| GVWR | 6500 lbs | Dry Weight | 4280 lbs |
| Cargo Capacity | 2220 lbs | Fresh Water Capacity | 48 gals |
| Grey Water Capacity | 33 gals | Black Water Capacity | 33 gals |
| VIN | 1SABS0BN5F28F5095 |
Description
This AR-ONE MAXX travel trailer 26BH by Starcraft RV is the perfect trailer for those with a larger family, or one that likes to travel with a few extra guests. This unit sleeps eight comfortably with double bed bunks and more.
Step inside an notice the queen bed in front to the right of the entry door. There are nightstands and wardrobes on either side of the bed. There is also an overhead shelf for more storage.
A sofa separates the living area from the bedroom. Nearby you will find a booth dinette with overhead storage and all the kitchen appliances needed to create meals and snacks on the go. There is a refrigerator, three burner range with microwave oven, and double kitchen sink with overhead cabinets for storage also.
In the rear left corner find sleeping for four with a double bed set of bunks. In the opposite corner there is a private toilet and tub/shower area, and a separate sink just outside the bathroom door. There is also a medicine cabinet above the sink.
A 16' awning will keep you from the elements whether it is rain or sunshine, and there is a front pass-through compartment for all of your exterior camping gear, plus so much more!
Features
- 6-gallon gas DSI water heater
- Bathroom vent
- Front diamond plate - black
- Microwave
- Pleated shades
- Radial tires
- Stereo with AM/FM and iPod/MP3 connection
- Water heater bypass system
Standard Construction Features
- 5/8" tongue-and-groove plywood main floor decking
- Fully decked roof with 3/8" decking
- One-piece, seamless rubber roof material
- Poly Flex one-piece underbelly covering
- R-7 fiberglass insulation in sidewalls, roof and floor
- Roof rafters constructed of residential-style tapered trusses
- Screwed-stile cabinetry with hardwood stiles
- 19” large plastic grab handle
- 48-gallon fresh water capacity
- 120V G.F.C.I. protected exterior receptacle
- 13,500-BTU A/C
- Bumper with drain hose carrier and end caps
- Cable TV prep
- Dark-tinted safety glass windows
- Electric brakes
- Front window with flush-mount stone guard (select models)
- Galvanized steel wheel wells
- Prep for bumper-mount grill
- Rain guttering, molded with drip spouts
- Roof-mounted antenna for radio
- Starmaxx pass-through storage
- Three-toned exterior metal
- Water system winterization kit
- 3-burner range
- 6 cu. ft. flush-mount refrigerator
- 81” interior height
- Acrylic sink with faucet
- Ball-bearing drawer guides, 50-lb. capacity with full-drawer extension
- Double-over-double bunk bed with 600-lb. bunk capacities (26BH and 27BHS)
- Evergreen mattress with upgraded radius corners
- Extra-large picture window at dinette
- Hardwood cabinet doors
- High-rise kitchen faucet
- Honey Glazed Cherry wood cabinetry
- Medicine cabinet
- Quilted bunk mats – Denver Mattress
- Shaw carpet with R2X stain and soil resistance (slide out models)
- Systems monitor panel
- 30-lb. propane bottles with cover (2)
- Electric awning
- Electric tongue jack
- Exterior speakers (2)
- Front and rear stabilizer jacks
- Outside shower
- Sink covers
- Decorative dinette light (select models)
- Jack knife sofa
- Kitchen back splash
- Valances with lambrequin legs
- Canadian Standards
- 26” LED TV and CD/DVD player with MP3 iPod input jack
- Aluminum rims
- Arctic Package: Insulated, heated and enclosed underbelly; foil insulation in roof
- Bumper-mount grill
- Ducted 13,500-BTU A/C (21FB, 25BHS and 26BH)
- Exterior fiberglass sidewalls (two-toned) with frameless windows
- LED interior lighting package
- Oven
- Spare tire with carrier and cover
