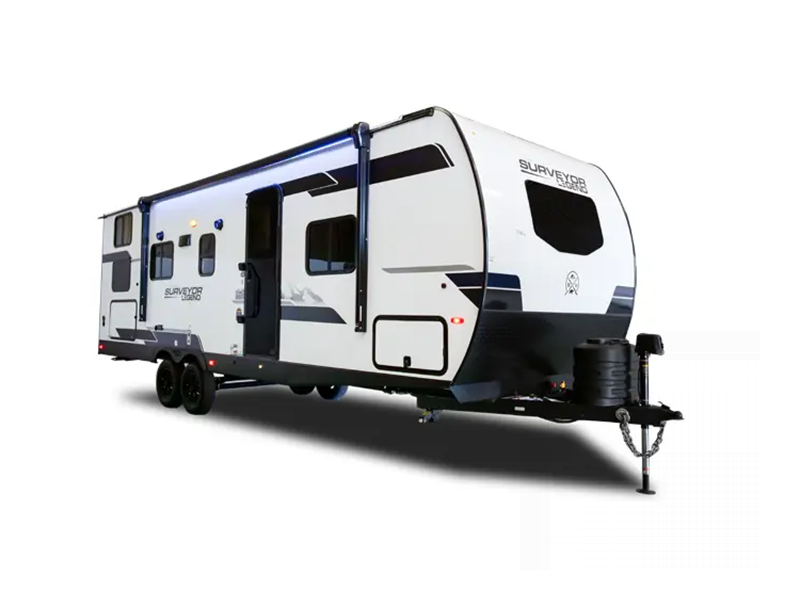

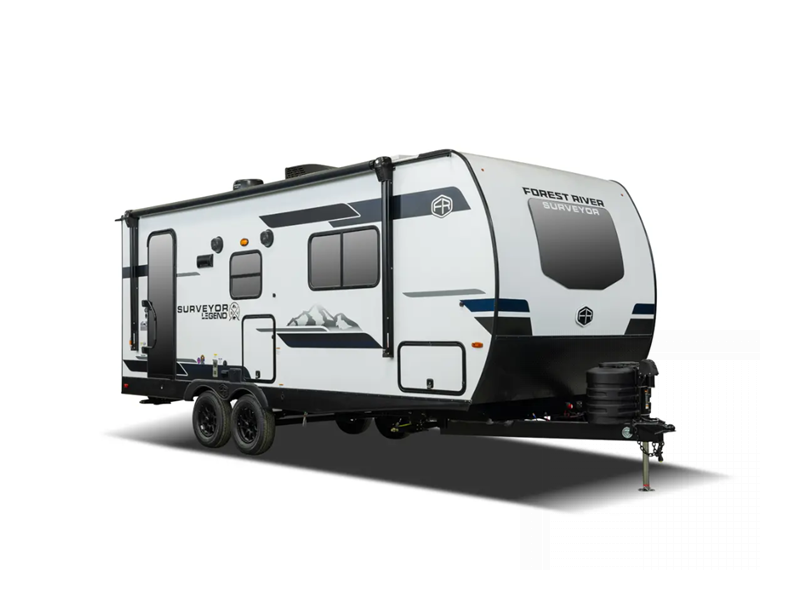

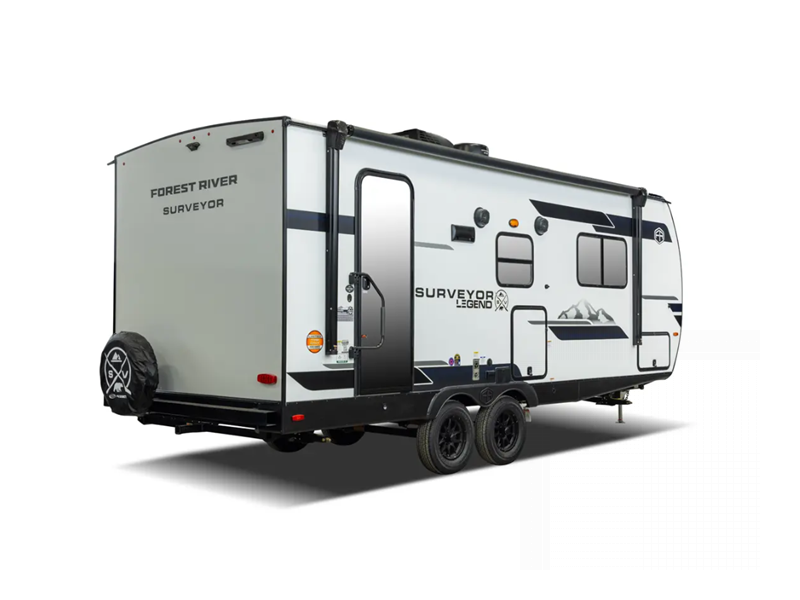

The Forest River Surveyor Legend travel trailers are the "Best Constructed, Most Turn-Key Ready-to-Go RV on the market today and it's easy to see why! The durable Azdel composite panels are resistant to rot, lighter than wood, and include superior insulating properties so you can enjoy your travel trailer for years to come.



Each Surveyor Legend travel trailer includes features and options that will provide you with the "Best Value Trailer" in the industry so you can enjoy each camping experience to the fullest. There are a variety of floorplans to choose from, including sub-4,000 lb. models that start below 4,000 lbs. for an easy tow, and Murphy bed models that use the interior space wisely so you can configure your seating and sleeping spaces each day. The Lami-Plast all weather protection features a fully heated and enclosed underbelly to extend your camping season year around, and the front diamond plate protection will help guard your trailer from rock and debris on the way to the campground.



The Surveyor Legend travel trailers by Forest River allow you to never stop exploring. Choose your favorite layout today and start making memories!

  • Surveyor Legend 202RBLE

    Surveyor Legend 202RBLE Floorplan Image

    Take a Virtual Tour

    Forest River Surveyor Legend travel trailer 202RBLE highlights: Outside Kitchen ... more about Surveyor Legend 202RBLE

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 3
    Slides 1
    Length 25 ft 1 in
    Ext Width 8 ft
    Ext Height 11 ft 3 in
    Int Height 6 ft 10 in
    Hitch Weight 497 lbs
    Dry Weight 4931 lbs
    Cargo Weight 2566 lbs
    Fresh Water Capacity 40 gals
    Grey Water Capacity 40 gals
    Black Water Capacity 30 gals
    Furnace BTU 30000 btu
    Available Beds Queen
    Refrigerator Type Residential
    Refrigerator Size 10 cu ft
    Cooktop Burners 3
    Shower Size 30" x 36"
    Number of Awnings 1
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric High Output Quick Recovery
    AC BTU 15000 btu
    Awning Info 16' One Touch Electric with LED Lights
    Axle Count 2
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

Surveyor Legend Features:

Standard Features (2022)



Artisan Package (Mandatory)

  • Extended Camping (15K High Performance A/C, Heat Ducts Concealed in Wall/Cabinets (Sub-4's Ductless) w/Radiant Heat & Heat Duct
  • to Underbelly, 10 Cu. Ft. Residential 12V Refrigerator, Azdel Composite Walls, PVC Roof Membrane, Porcelain Toilet, Friction Hinge Entry Door(s),
  • Black Tank Flush, Rear Camera Prep, Rooftop Solar Prep, Adjustable Platform Step - Main Entry, USB Ports

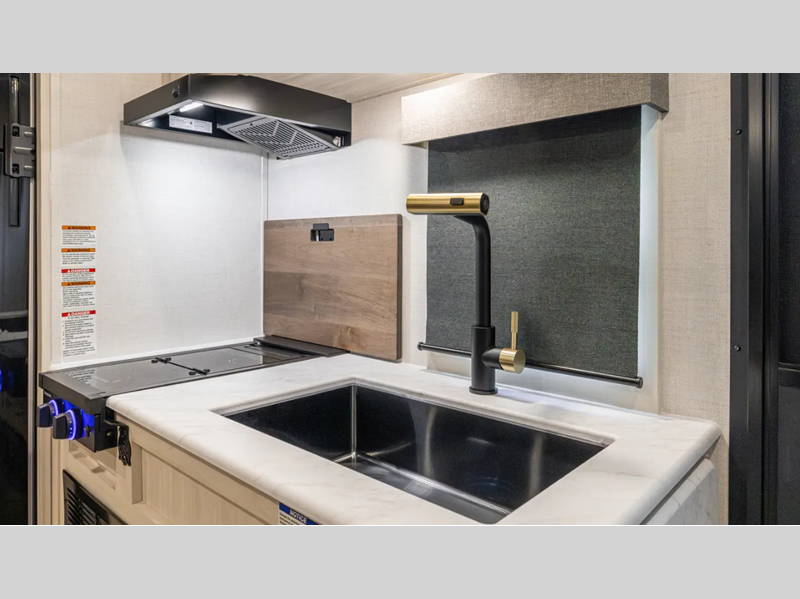

  • Stainless Steel Undermount Kitchen Sink w/Backsplash, Undermount Bath Sink w/Backsplash

Surveyor Legend Package (Mandatory)

  • Integrated Front Windshield, Slow Close Shower Door, Bluetooth Stereo, LED Interior & Exterior Lighting,
  • Storage Doors Under Dinette, Pleated Night Shades, Power Tongue Jack, Residential Bath Faucet, Roof Ladder (N/A 202RBLE),
  • One Touch Electric Awning w/Led Light strip, Surf(x)® Seamless Countertops T/O, Gourmet Cooking Collection (N/A Sub-4s)

Turn-Key Camp Essentials (Mandatory)

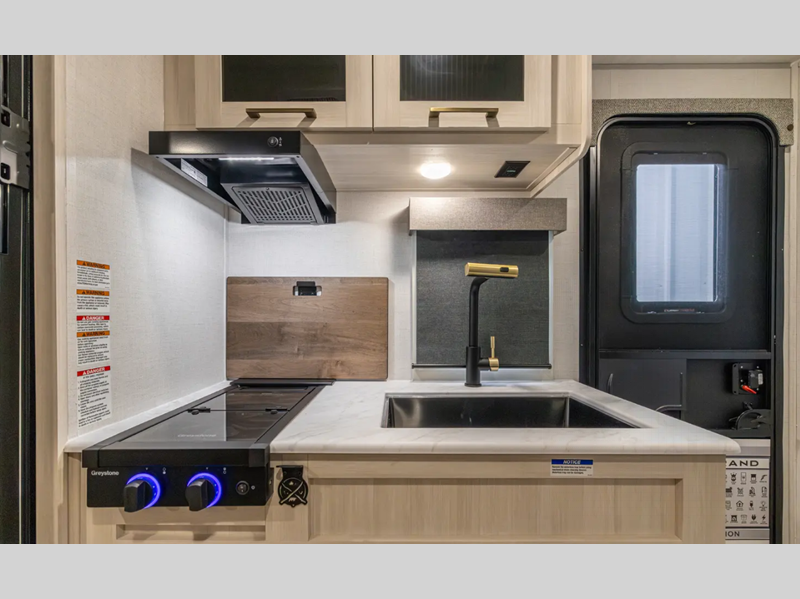

  • Outdoor Kitchen - Gas Griddle, Sink, Refer & Side Shelf (Sub-4s Griddle & Shelf), Garbage Can in Bath & Kitchen, Resort Bath Hooks,
  • Toothbrush Holder, Vertical Mount Toilet Tissue Holder, Motion Sensor LED Lighting Front Baggage & Walk-In Pantry (Select Models),
  • 3/4" Stab Jack Drill Bit & Holder, Oversized Safety Assist Handle, Knife Block & Spoon Holder, Exterior LED Speakers, Custom Logo Laundry Bag,
  • Sink Covers, Euro Style Entry Door Handle, Silverware Organizer-Kitchen, High Arc Pull Down Faucet, Platinum Vanity Mirror, Pet Friendly Features

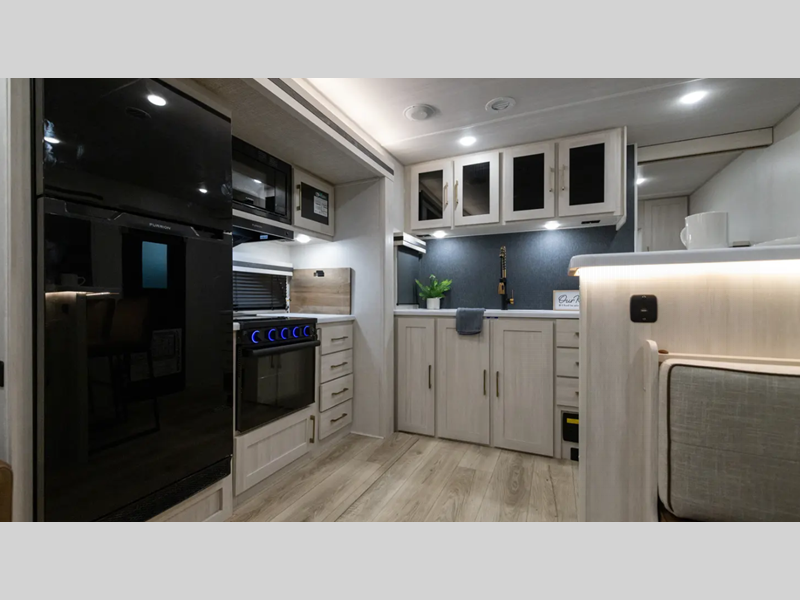

Appliances/Equipment

  • 20,000 BTU Furnace (Sub-4s)
  • 30,000 BTU Ducted Furnace
  • 6 Gallon G/E DSI High Output Quick Recovery Hot Water Heater
  • Digital Thermostat Wall Mounted
  • Greystone® Gourmet Cooking Collection (N/A Sub-4s)
  • Greystone® Convection Microwave (Sub-4s)

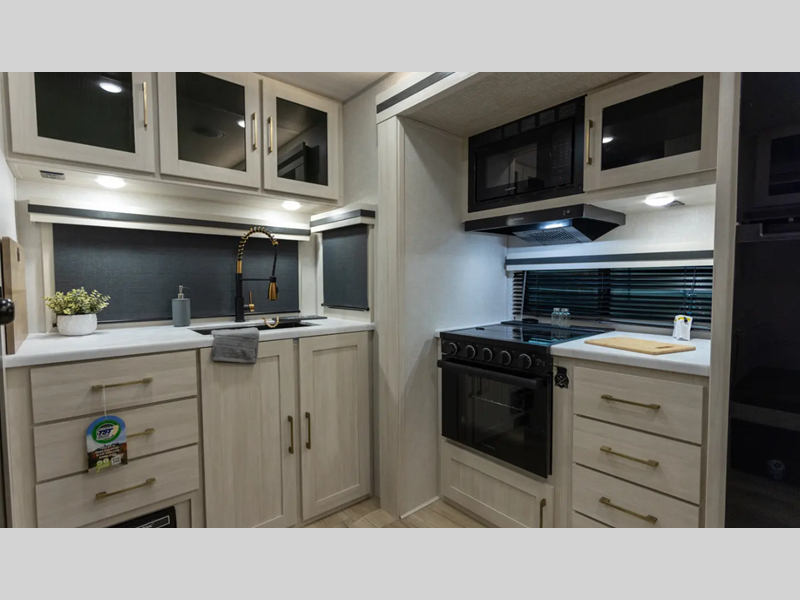

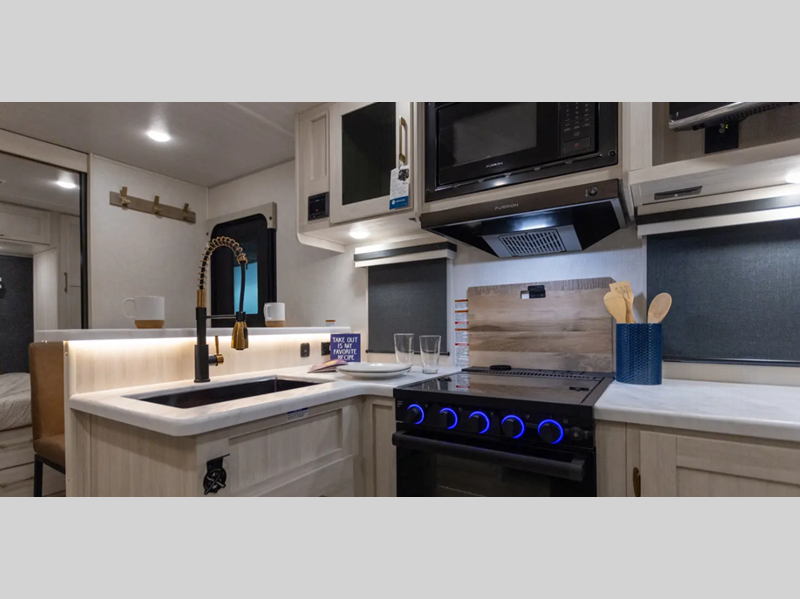

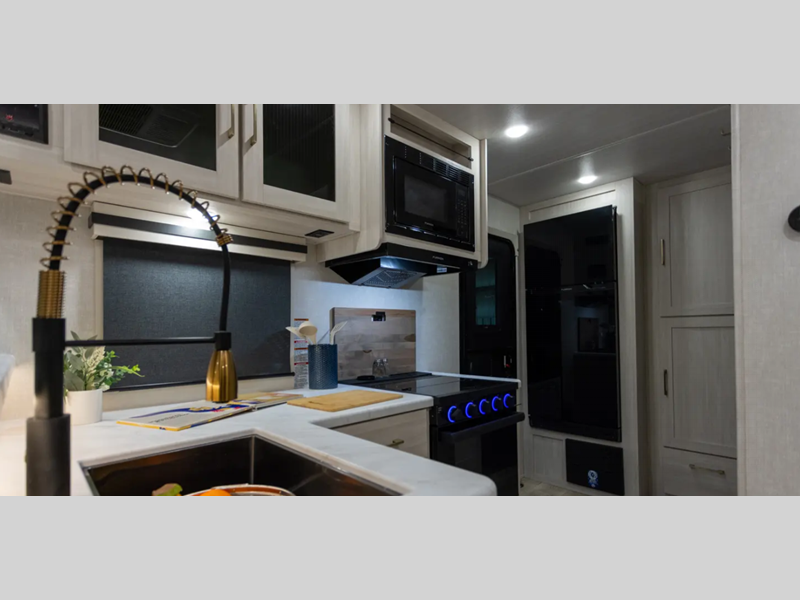

  • Range Top 3-Burner and 17" Gas Oven w/LED Lights
  • Range Top Two-Burner (Sub-4s)
  • Stainless Power Range Hood w/Light

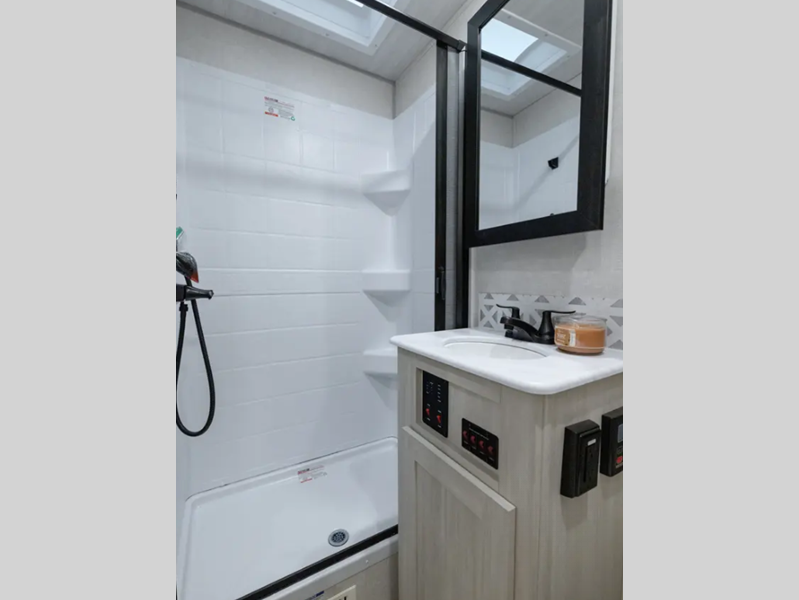

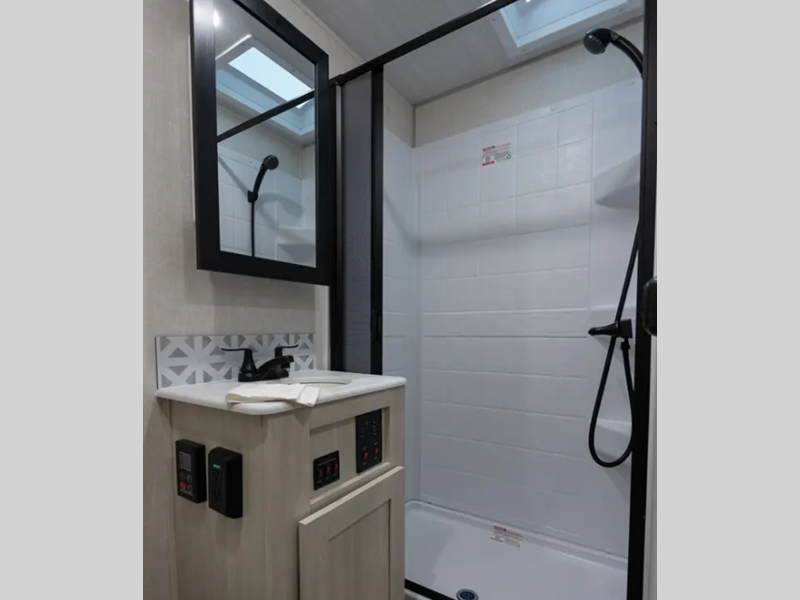

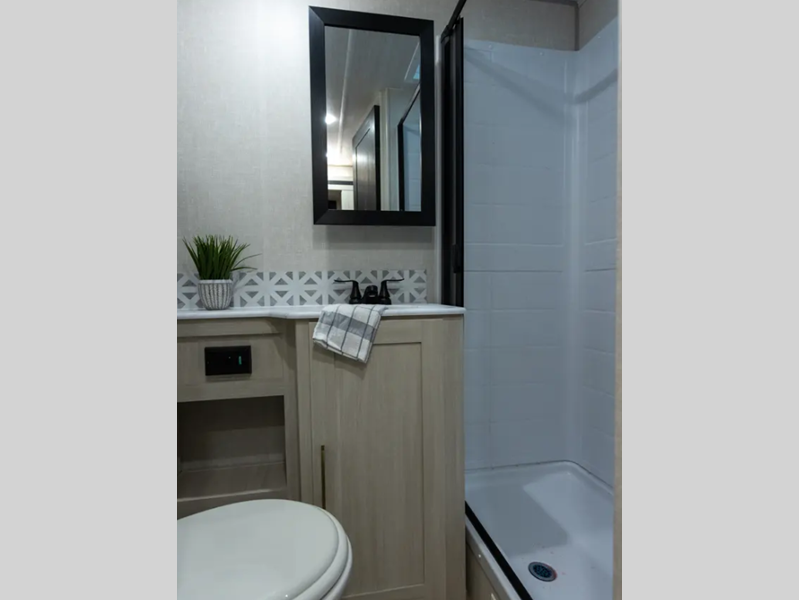

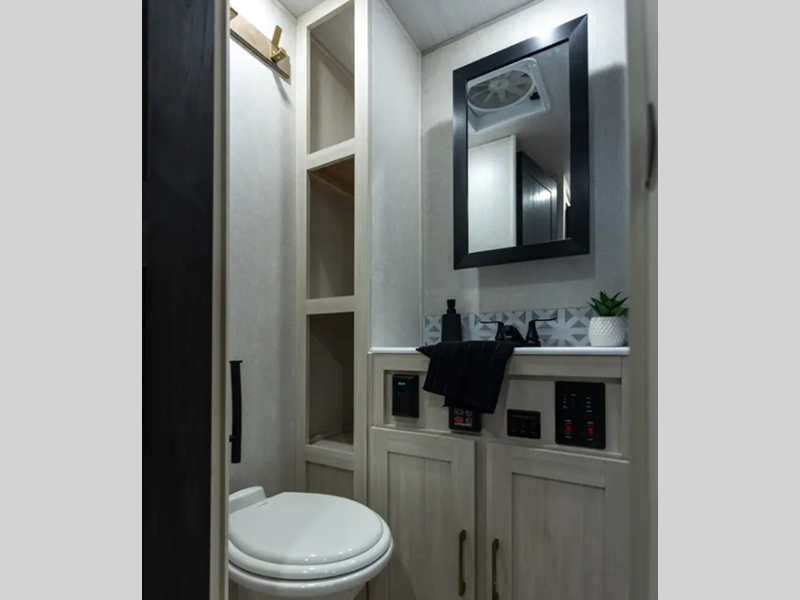

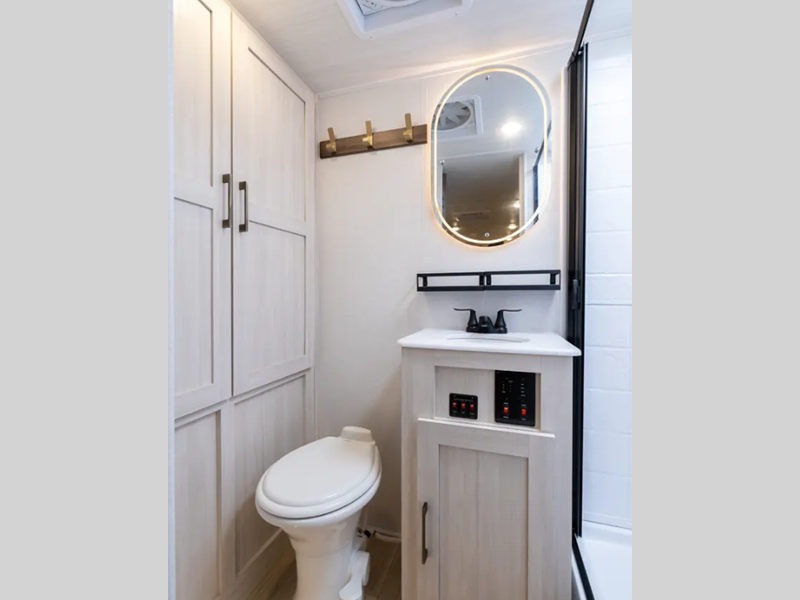

Bath

  • 12V Power Exhaust Fan
  • Heat Duct & A/C Vent (Most Models)
  • Privacy Door Lock
  • Skylight over Tub/Shower
  • Storage Cubbies Easily Stow Toiletry Kit, Blow Dryer, Linens
  • Systems Monitor Panel
  • Toilet Porcelain Thetford Under-lip Flush & Single Cast Mold
  • Window Natural Light & Vented (Select Models)

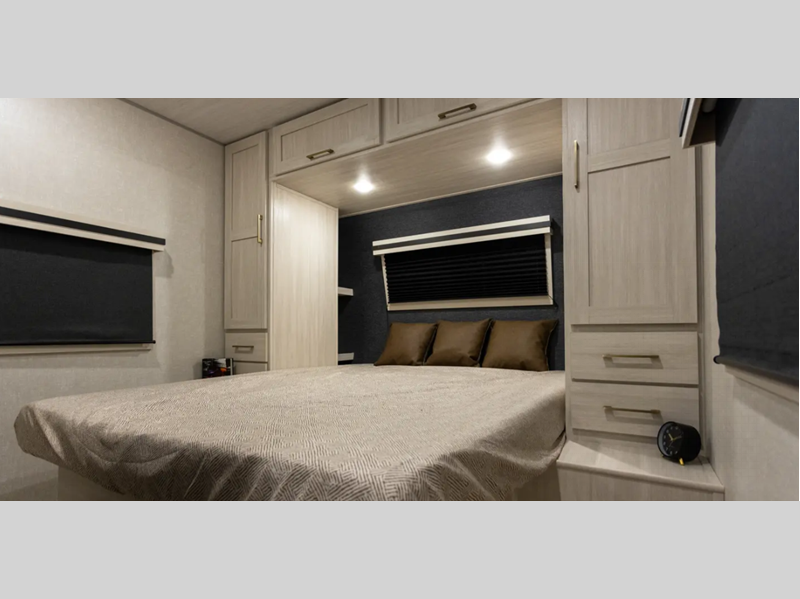

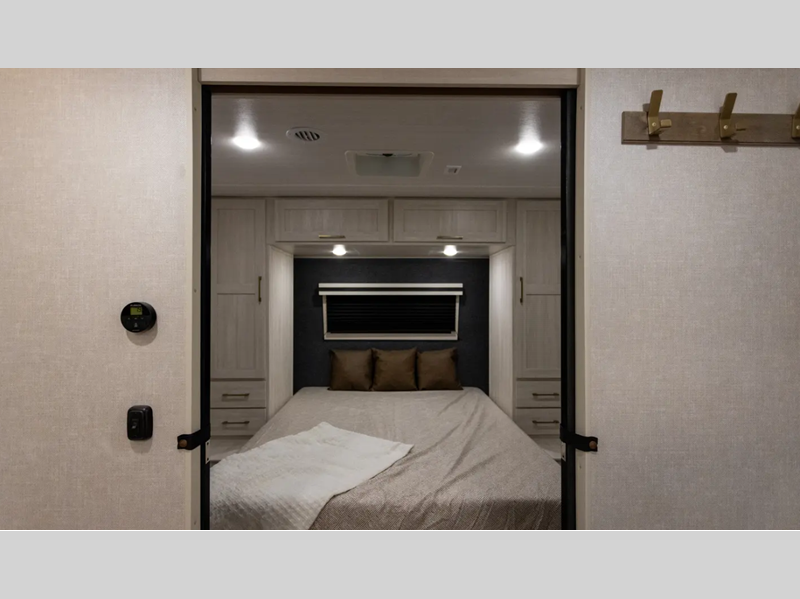

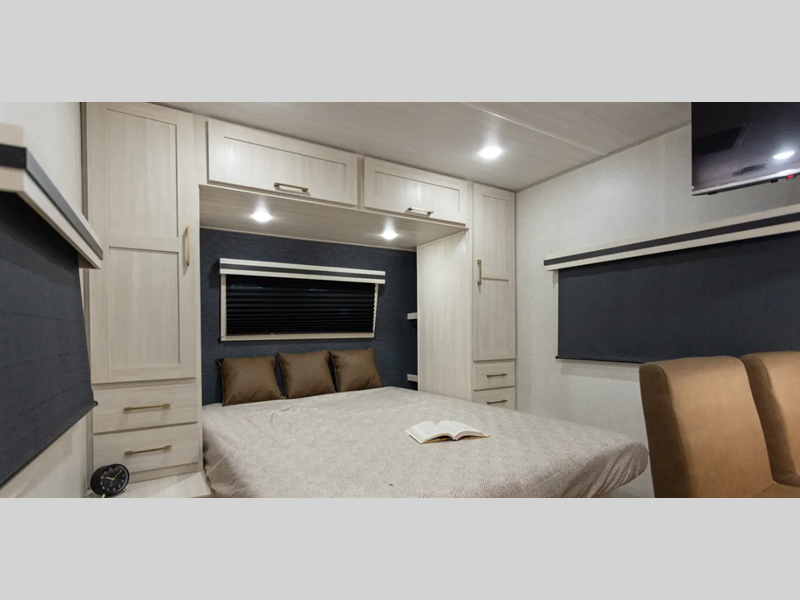

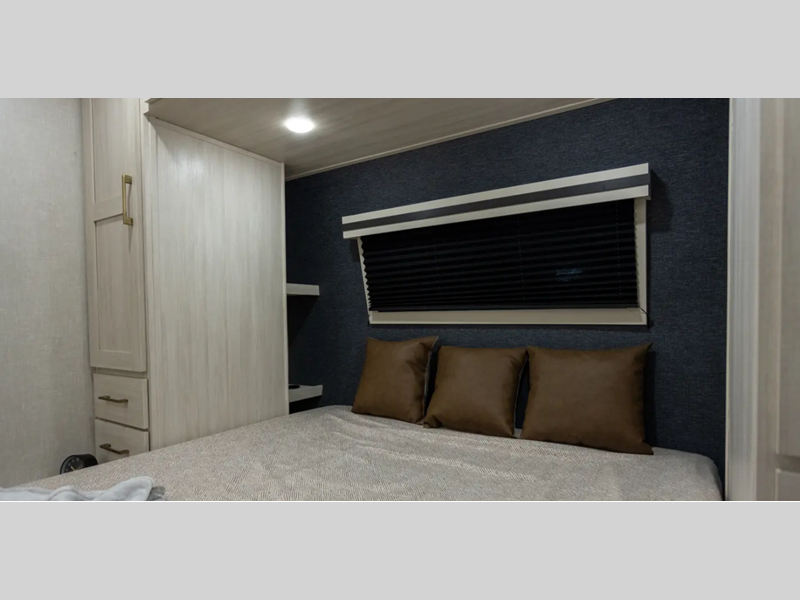

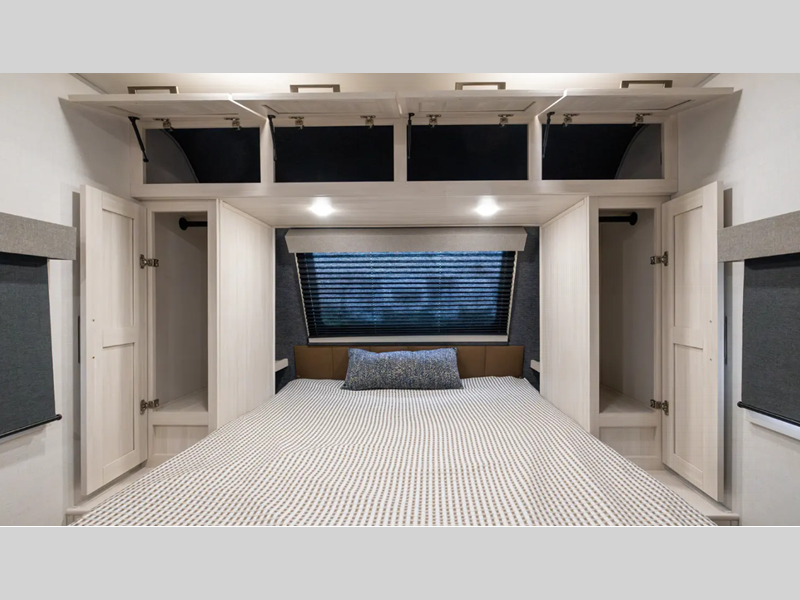

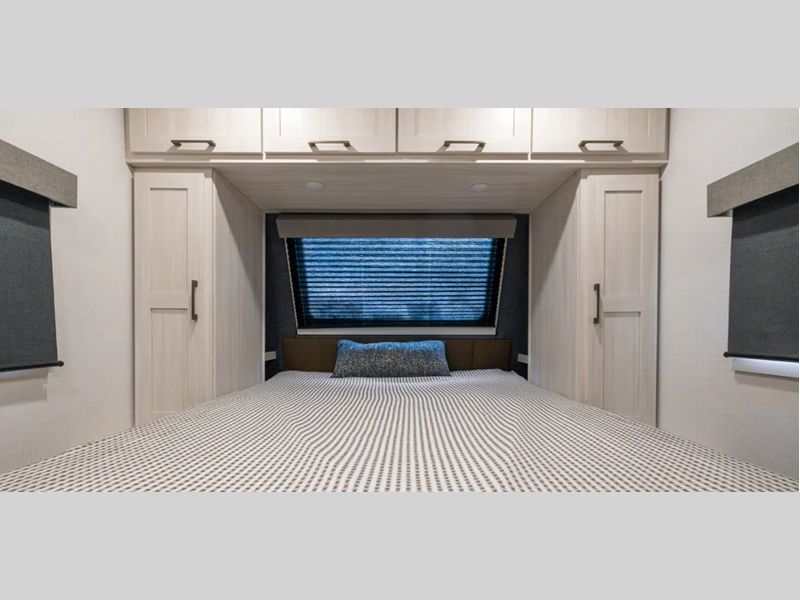

Bedroom

  • 60 X 80 Residential Queen Bed
  • Bedding Embossed Coverlet
  • Cubbie Storage Area w/110V Outlets & Cup Holders
  • Double-Strut Lift Super Storage Under Bed (Most Models)
  • Drawer(s) On Each Side Of Bed
  • Indura-Kleen Evergreen Mattress (Antibacterial, Hypoallergenic, Mold & Mildew Resistant)
  • Oversize Wardrobes -Actually Fit Hangers & Clothes

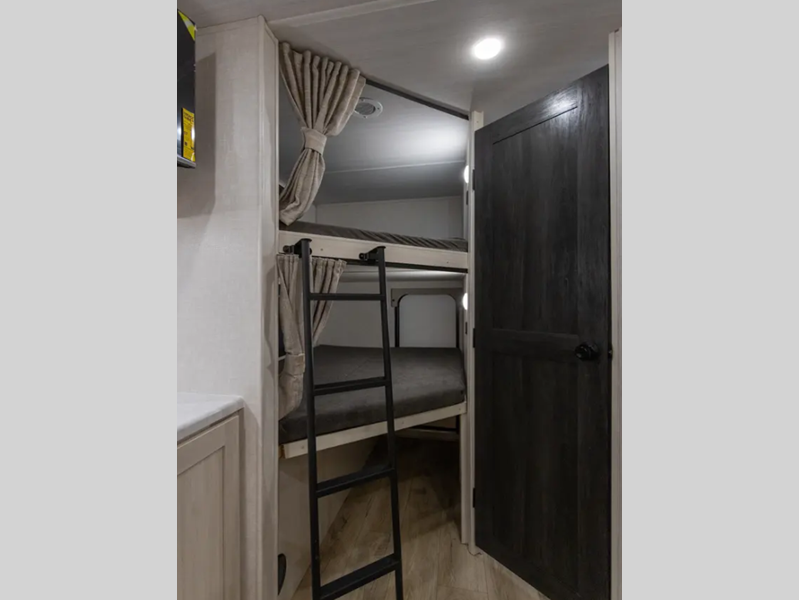

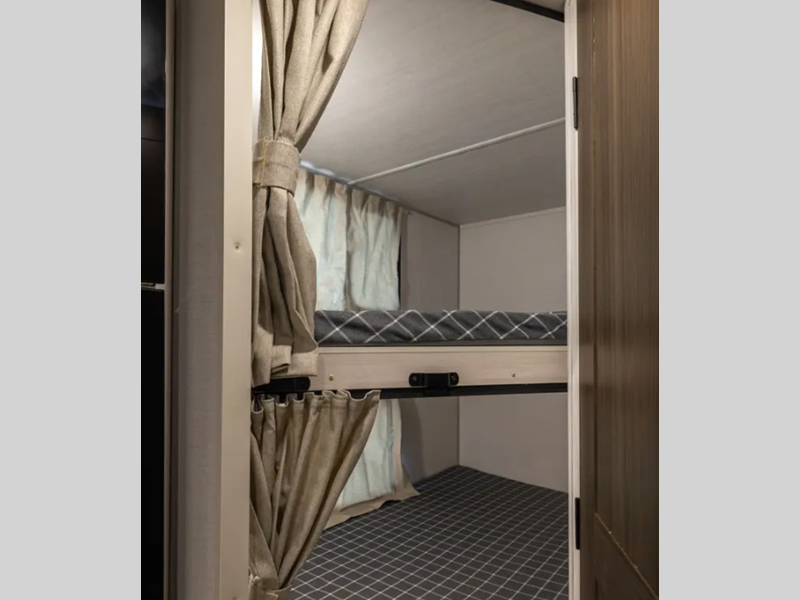

  • Teddy Bear® Bunk Bedding (Bunk Bed Models)

Construction

  • 1 1/2" Laminated Aluminum Frame Sidewalls, Rear Wall, & Slide out Walls (R7 Closed Cell Block Foam Insulation)
  • 2" Laminated Aluminum Perimeter Floor & Studs (R9 Closed Cell Block Foam Insulation)
  • Aluminum Framing All Openings; Windows, Doors, Appliances
  • Roof: Trusses 16" On-Center, R14 Insulation, 3/8" Decking
  • Underbelly: Lami-Plast™ All Weather Protection Fully Heated & Enclosed

Electrical

  • 30 AMP Marine Grade Detachable Power Cord
  • 55 AMP Converter w/Charger (35 AMP Sub-4s)
  • Battery Disconnect Mounted Front A-Frame
  • Cable & Satellite Ready
  • GFI 120V Exterior Receptacle Door side
  • LED Amber Patio Light
  • LED Interior/Exterior Lighting

Exterior

  • Two Tone Diamond Ice & White Star Gel-Coated Fiberglass
  • Front Diamond Plate Protection
  • Dual Battery Rack
  • 4" Square Bumper w/Sewer Hose Storage
  • Magnetic Baggage Door Catches

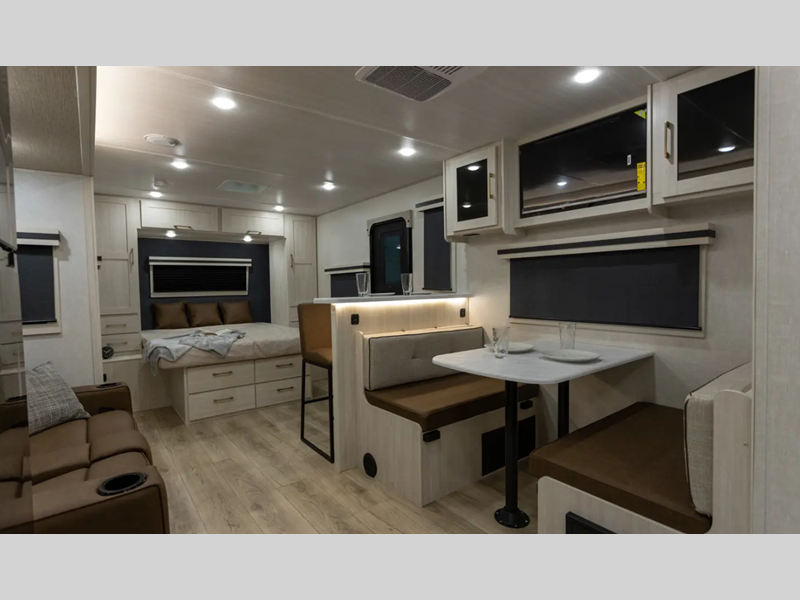

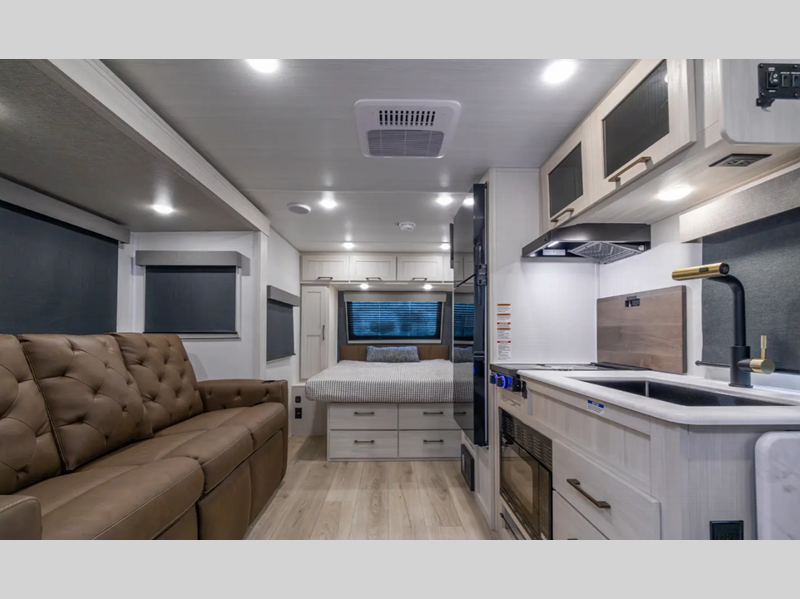

Interior

  • 82" Ceiling Height (78" Sub-4s)
  • A/C Ceiling Vents Adjustable Flow & Direction

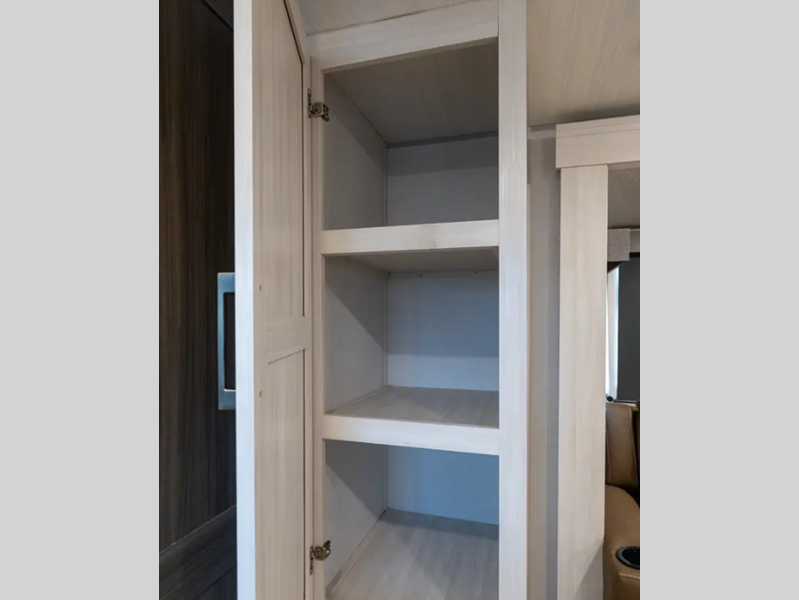

  • Adjustable Shelves in Pantry (Where Applicable)
  • Ceiling Light Switch At Entrance Door
  • Designer Shaw® Lino Flooring w/ 7 year Warranty

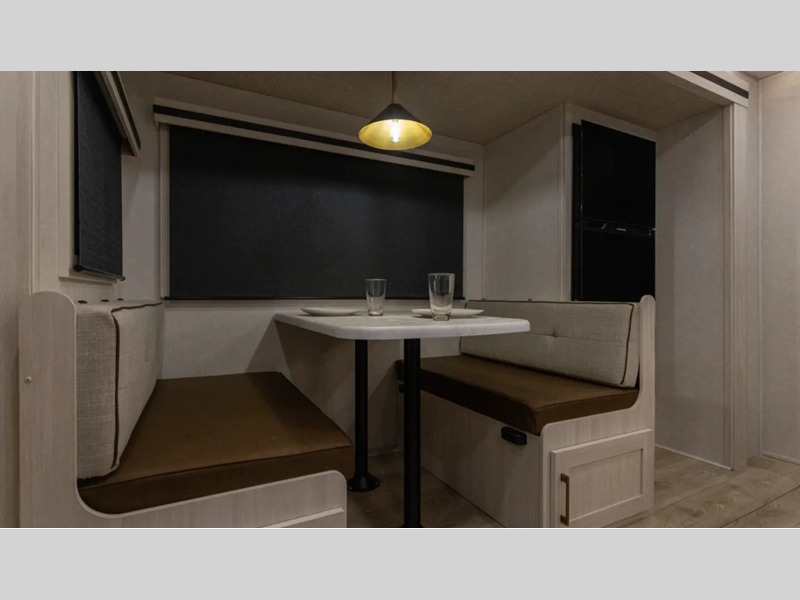

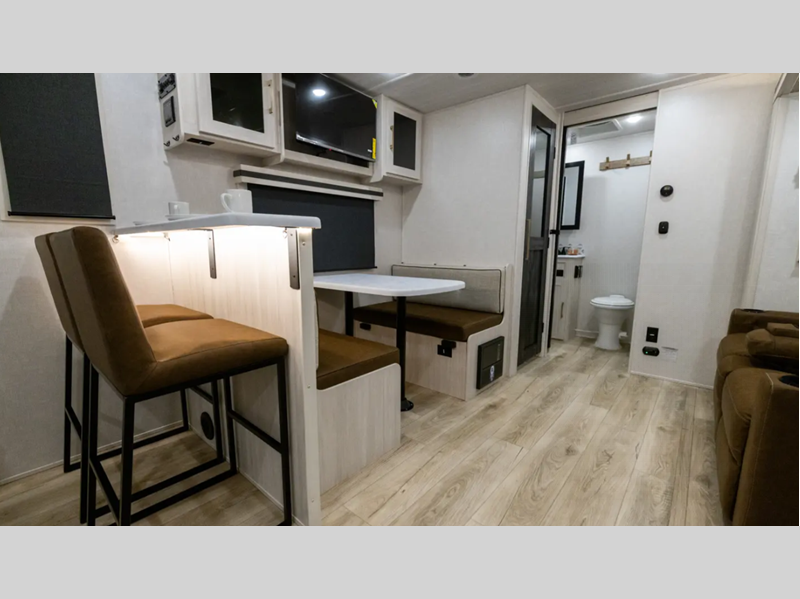

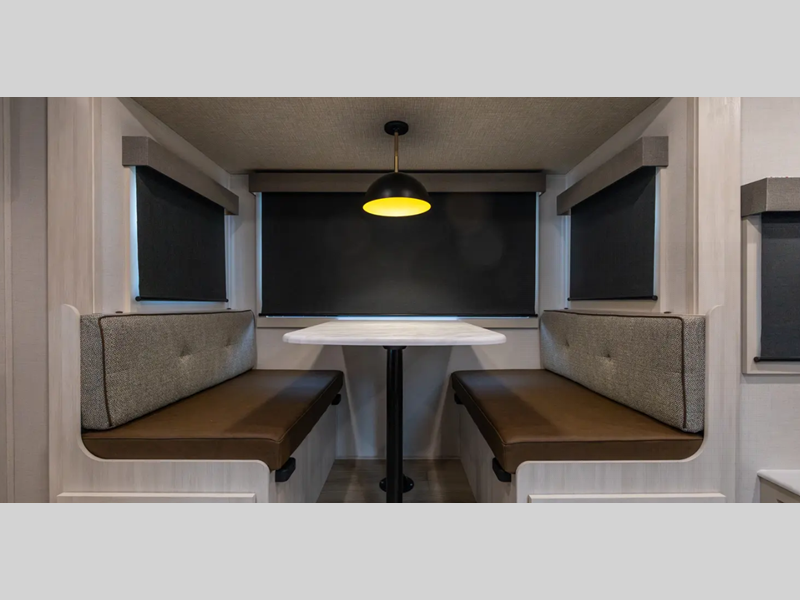

  • Doors Under Dinette
  • Long Lasting Wood Drawers w/Ball Bearing Glides
  • Modern Frame Edge Cabinets w/Prism Curio Glass On Overheads
  • Shaw® Stain & Soil Resistant Carpet (Slide-Outs)
  • Vented Side Windows In Slide-Outs

Plumbing

  • 12V Demand Water Pump
  • Black Tank Flush *Artisan Package
  • City Water Fill
  • Color Coded Water Lines
  • Gravity Water Fill
  • Rotocast Fresh Water, Black, Gray Tanks (Underfloor)
  • Water Heater Bypass Kit
  • Winterization Kit

Running Gear

  • 2 5/16" Coupler
  • 205/75R15 LRD (Select Models)
  • 225/75R15 LRD (Sub-4s & Select Models)
  • Automotive Style Wheels
  • Lippert Axles Leaf Spring Suspension
  • Nitrogen Filled Radial Tires w/Steel Lug Inserts
  • Self Adjusting Electric Brakes
  • Spare Tire & Carrier
  • Super Lube Hubs

Safety and Security

  • Brake-Away Switch
  • Carbon Monoxide Detector
  • Dead Bolt Door Lock
  • Fire Extinguisher
  • Ground Fault Electrical Circuit(s)
  • Heavy Duty Safety Chains
  • LP Leak Detector
  • Smoke Detector
  • Tinted Safety Glass Windows

Legend Options

  • 2ND A/C 13.5K Bedroom Requires 50 AMP Service - (276BHLE, 296QBLE, 320BHLE)
  • 50 AMP Service Prep 2nd A/C (276BHLE, 296QBLE, 320BHLE)
  • 28" TV (Sub-4s)
  • 32" TV (202RBLE, 203RKLE, 240BHLE)
  • 39" TV (252RBLE, 276BHLE, 296QBLE, 320BHLE)
  • Arctic Package (12V Heat Pads On Holding Tanks)
  • Bamboo Wood Plank Lino Flooring
  • Bike/Utility Rack

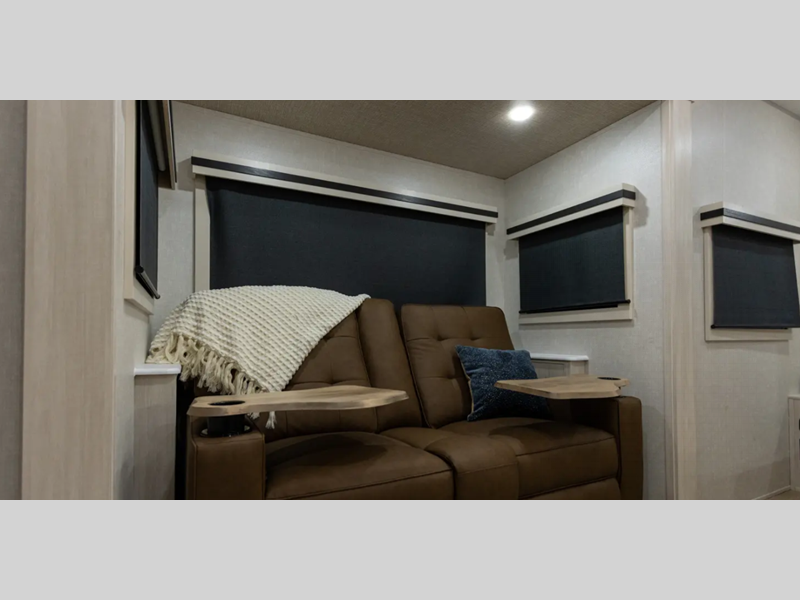

  • TSS -Trifold Sofa Seat IPO of Dinette 202RBLE and IPO Storage Sofa (252RBLE, 276BHLE, 296QBLE, 320BHLE)

Please see us for a complete list of features and available options.

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
